Shenzhou fiberglass insulation materials we produce is engineered for effective thermal and acoustic insulation to get excellent energy-saving performance.
Our fiberglass insulation materials include yellow fiberglass, pink fiberglass, chocolate formaldehyde-free fiberglass, and white formaldehyde-free fiberglass.
They all have various forms including blanket, board and tubes.All forms are available unfaced or faced with FSK or white PSK vapor retarders. Fiberglass blanket of both facing options include a 2" (51 mm) stapling Range for easy installation.
Product Introduction
Product Category： Glass wool
Eco-friendly /Fructose-based Eco-Friendly Glass wool Product Type: Board/ Blanket/ Tube
Technical Data

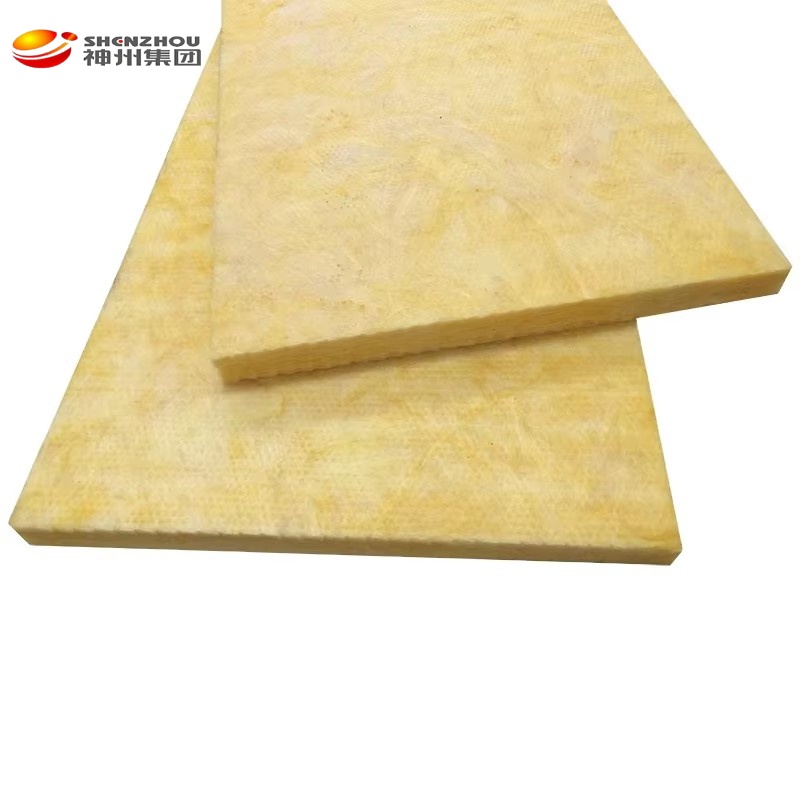

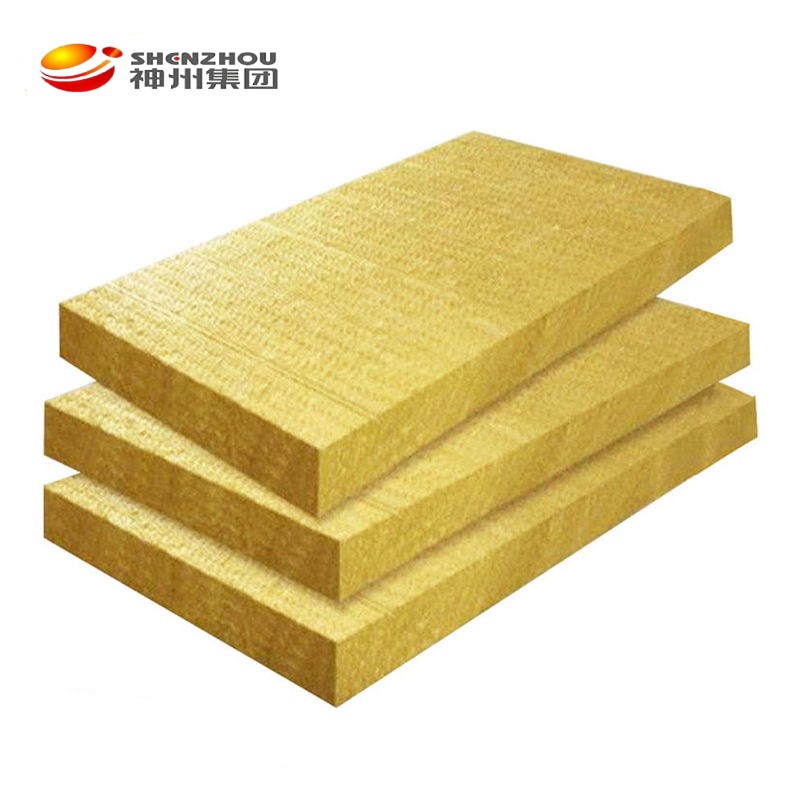

Standard Specification for Glass Wool Board
|
Bulk density（kg/m³) |
32 40 48 56 64 80 96 |
|
Thickness（mm） |
25~100 |
|
Width（mm） |
600 |
|
Length（m） |
12 |
The above specifications are commonly used specifications,other specifications can also be customized as per clients’requirement. They are all available unfaced or faced with aluminum foil as per clients’requirement.
Technical Data Sheet
|
Test Items |
Test Meth |
od |
Test Value |
|
|
Fire Hazard Classification |
ASTM E8 UL 723 |
4 |
Flame Spread <25 Smoke Developed <50 Grade A incombustible materials≤0.3 |
|
|
Thermal Conductivity |
ASTM C518 |
0.034 - 0.048 (W/m·K) |
||
|
Corrosion Resistance |
ASTM C6 |
65 |
Will not accelerate corrosion of steel or copper. |
|
|
Resistance To Fungi And Bacteria |
ASTM C6 |
65 |
Does not breed or promote fungi or bacteria growth. |
|
|
Moisture Absorption |
ASTM C 1 GB 5480.7 |
104 -87 |
3% of weight(49，relative humidity Moisture absorption 90%) 5% of weight(49，relative humidity90%) |
|
|
Moisture Permeability |
ASTM E96 GB/T 17146-1997 |
Max.0.013g/24h·m2·mercury/mm |
||
|
Temperature Range |
ASTM C411 |
Up to 4 |
00 °C |
|
Application
Glass wool insulation materials according to different application scenarios, developed a higher adaptability of a variety of products. The unique product design makes the working condition temperature reach 442 °C,which is widely used in the industrial equipment and the piping insulation engineering with the hot surface temperature height of 25o C, can meet the petroleum, chemical, light industry, metallurgy and other industries and power plant flue,hot air duct,dust catcher, chimney lining, deaerator tank, pulverizing system, desulphurization equipment heat insulation requirements, also suitable for pipe diameter greater than 2oomm of various processes, long heat transfer network pipeline insulation.
The Field of Petrochemical Industry
Steel Construction
Commercial Construction
Electromechanical Heating and Ventilating System
Smoke Control and Exhaust System for Industrial Buildings
The Field of Energy and Electricity
