Formaldehyde-free White Glass Wool
Formaldehyde-free White Glass Wool

Formaldehyde-free White Glass Wool

SHENZHOU operates complete white glass wool insulation production lines using the latest-generation technology to manufacture boards, sliced panels, rolled blankets, and pipes. These products meet residential and industrial thermal and acoustic insulation needs, fully complying with top international standards (EN, DIN, ASTM).

Inquire Now Next Product

Overview of SHENZHOU Formaldehyde-Free White Glass Wool Insulation

SHENZHOU formaldehyde-free white glass wool is based on the traditional centrifugal glass wool process, with optimized raw material formulas and forming techniques. The result is extremely fine glass fibers combined with a new acrylic solid resin binder, completely abandoning chemical binders. The insulation contains no phenol, formaldehyde, urea, or other toxic substances, making it especially suitable for environments with high environmental requirements or dense personnel, such as medical facilities, pharmaceutical workshops, aseptic environments, high-grade commercial buildings, HVAC duct insulation, ceilings, and equipment insulation and sound absorption applications.

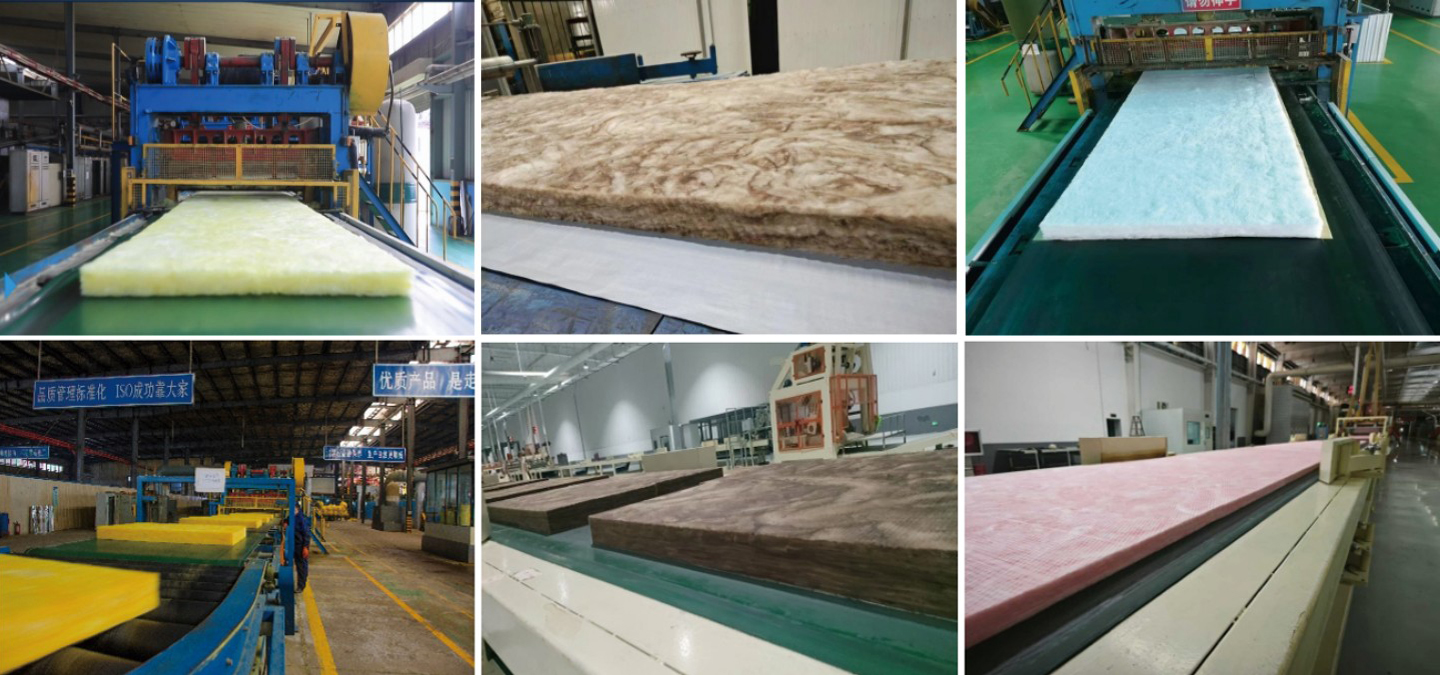

At the HOT END of the production system, raw materials are dosed, mixed, melted, and centrifuged into fibers. The fibers are impregnated with the acrylic binder and formed into a preliminary mat, which is then transported via continuous conveyors to the COLD END for binder polymerization. The product is subsequently cut to shape and packaged for shipping.



SHENZHOU glass wool is available in four main colors—yellow, white, pink, and black—and offers four facing options: FSK, Kraft, white cover, and BGT. All production lines comply with the latest international environmental regulations.



Distinctive Advantages:



  • ·   Excellent thermal and acoustic performance

  • ·   Lightweight, flexible, and easy to fabricate on-site

  • ·   Non-combustible and fire-retardant

  • ·   Durable, long-lasting, and termite-proof

  • ·   Safe and environmentally friendly, free of harmful chemicals

Technical Data

Test Items

Test Meth

od

Test Value



Fire Hazard Classification

ASTM E8

UL 723

4

Flame Spread <25 Smoke Developed <50 Grade A incombustible materials≤0.3

Thermal Conductivity

ASTM C518

0.034 - 0.048 (W/m·K)

Corrosion Resistance

ASTM C6

65

Will not accelerate corrosion of steel or copper.

Resistance To Fungi And Bacteria

ASTM C6

65

Does not breed or promote fungi or bacteria growth.

Moisture Absorption

ASTM C 1

GB 5480.7

104

-87

3% of weight(49，relative humidity Moisture absorption 90%)

5% of weight(49，relative humidity90%)



Moisture Permeability

ASTM E96

GB/T 17146-1997



Max.0.013g/24h·m2·mercury/mm

Temperature Range

ASTM C411

Up to 4

00 °C



Standard Specification for Glass Wool Board



Bulk density（kg/m³)

32 40 48 56 64 80 96

Thickness（mm）

25~100

Width（mm）

600

Length（m）

12



Standard Specification for Glass Wool Blanket



Bulk density（kg/m³)

10 12 16 18 24

Thickness（mm）

25~200

Width（mm）

1200

Length（m）

8 10



Test Items TestMethod Test Value
FireHazard Classification ASTM E84
UL723		 Flame Spread<25 Smoke Developed<50
GradeAincombustible materials≤0.3
Thermal Conductivity ASTMC518 0.034-0.048(W/m ·K)
Corrosion Resistance ASTM C665 Will not accelerate corrosion ofsteel orcopper.
ResistanceTo FungiAndBacteria ASTM C665 Doesnot breedor promote fungior bacteriagrowth.
Moisture Absorption ASTMC1104
GB5480.7-87		 3%of weight(49,relativehumidity Moisture absorption 90%)
5%of weight(49,relative humidity90%)
Moisture Permeability ASTM E96
GB/T17146-1997		 Max.0.013g/24h ·m2 ·mercury/mm
Temperature Range ASTM C411 Upto 400°℃



Eco-Friendly White Glass Wool

Application

SHENZHOU white glass wool insulation is lightweight and easy to install, making it ideal for:



Glass wool insulation materials have been developed in a variety of products to adapt to different application scenarios. The unique design allows the insulation to withstand working temperatures up to 442 °C, making it widely used for industrial equipment and piping insulation projects where surface temperatures reach 250 °C.

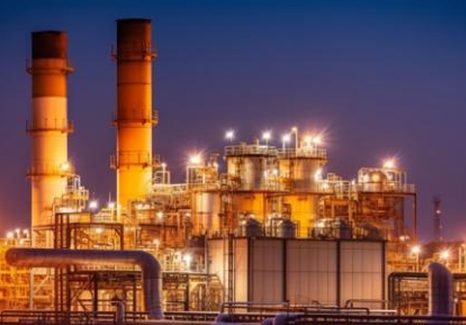

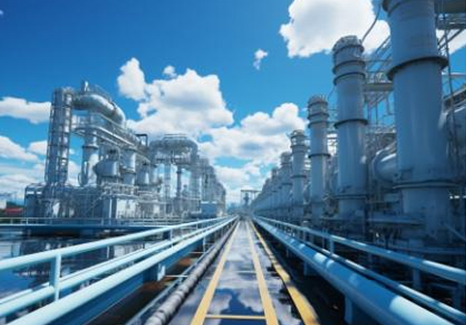

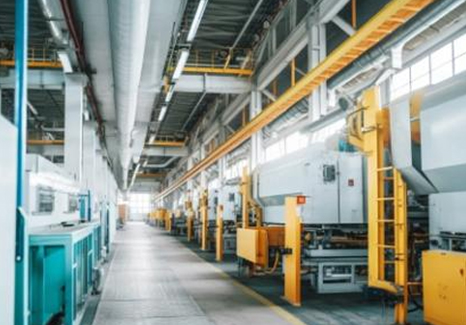

These products meet the heat insulation requirements of industries such as petroleum, chemical, light industry, metallurgy, and power generation. Typical applications include flues, hot air ducts, dust collectors, chimney linings, deaerator tanks, pulverizing systems, and desulfurization equipment. They are also suitable for pipelines with diameters greater than 200 mm and for long heat-transfer network pipelines.



  • ·   Office buildings and modern entertainment centers

  • ·   Roofs and HVAC systems

  • ·   Residential and industrial buildings, including:

    •       ♦  Walling and partitioning

    •       ♦  Faced and external walls

    •       ♦  Suspended ceilings

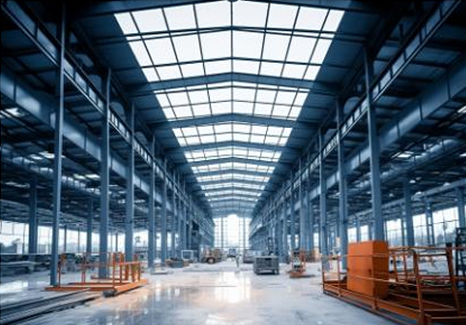

    •       ♦  Steel structures

    •       ♦  Prefabricated houses

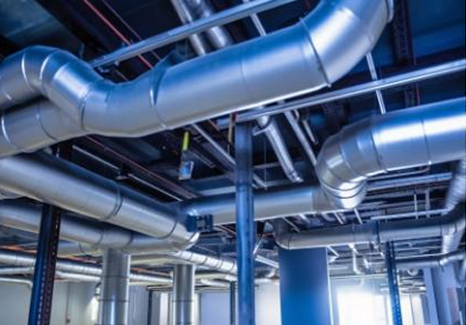

    •       ♦  HVAC duct works



It also retains the key characteristics of traditional glass wool, including fire resistance, flexibility, elasticity, non-corrosiveness, and excellent thermal insulation performance.
