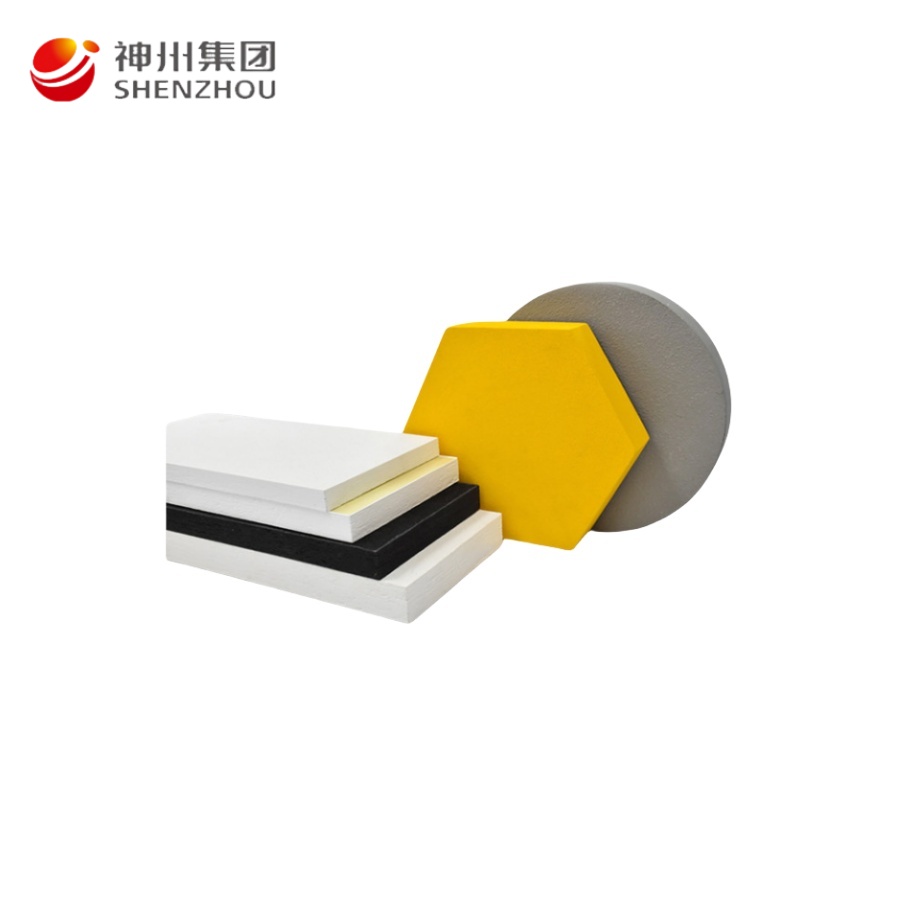

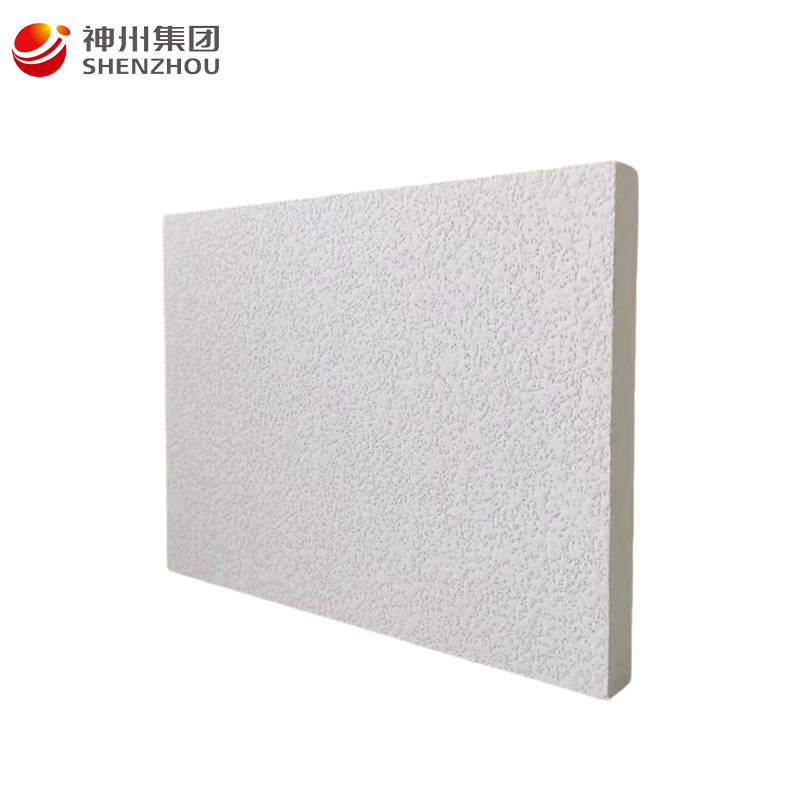

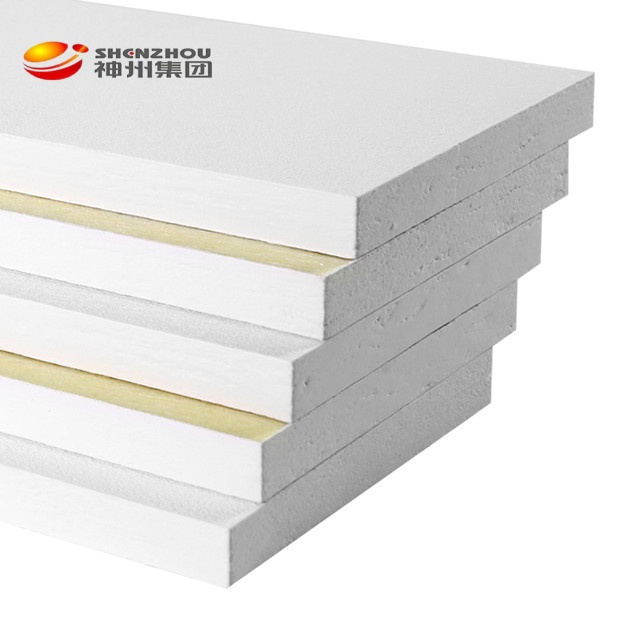

SHENZHOU fiberglass acoustic ceiling tiles are customizable suspended sound-absorbing panels developed for commercial and public interiors. Manufactured with a Class A non-combustible glass wool core and a decorative surface facing, the panels help absorb reflected sound, reduce room reverberation and improve indoor acoustic comfort. Frameless suspension installation, with special metal pendants and adjustable suspension ropes,which is suitable for multi-shape and multi-color design schemes.
The fibreglass acoustic ceiling panels support vertical or horizontal frameless suspension using special metal hangers and adjustable suspension cables. Panel size, shape, density, weight, color and veneer can be customized to match different ceiling layouts and architectural concepts. Acoustic performance is tested according to GB/T 20247-2006 / ISO 354:2003.
Product Introduction
SHENZHOU fiberglass acoustic ceiling tiles combine acoustic treatment with flexible interior design. Unlike conventional flat ceiling boards, these panels can be suspended horizontally, installed vertically or arranged as a large-format open ceiling system. The porous glass fiber structure absorbs part of the reflected sound energy generated by conversations, equipment and indoor activities. This helps control excessive reverberation in large or open spaces while maintaining a clean and modern ceiling appearance. For projects that require coordinated acoustic treatment on different surfaces, the ceiling system can also be used together with our acoustic wall panels.
Horizontal suspension is suitable for open-plan offices, restaurants, reception areas and public interiors where acoustic treatment is required without completely covering the original ceiling. The suspension height and panel arrangement can be adjusted according to the ceiling structure and visual design.
Vertical installation can be used in high or open ceilings where a larger exposed absorption area is required. Panels can be arranged in parallel rows or customized patterns to create a recognizable ceiling feature.
For airports, exhibition areas, auditoriums and other large interiors, SHENZHOU can produce large-format suspended acoustic ceiling panels based on the architectural layout. Panel dimensions, colors, spacing and suspension orientation can be coordinated with the overall ceiling design.
Features
Frameless Suspension Mounting
Panels of various sizes and densities can be customized according totheclients'requirements.
The product is tested according to GB/T20247-2006/ISO 354:2003, and the sound absorption performance is classified according to GB/T16731-1997
Composite Various Veneer
Relying on Shenzhou Group's strong production capacity and technical level, we are capable of custom-made design-ing and producing ceiling systems,andalso supplying keel systems.intheform ofdata delivery,program delivery,product delivery.

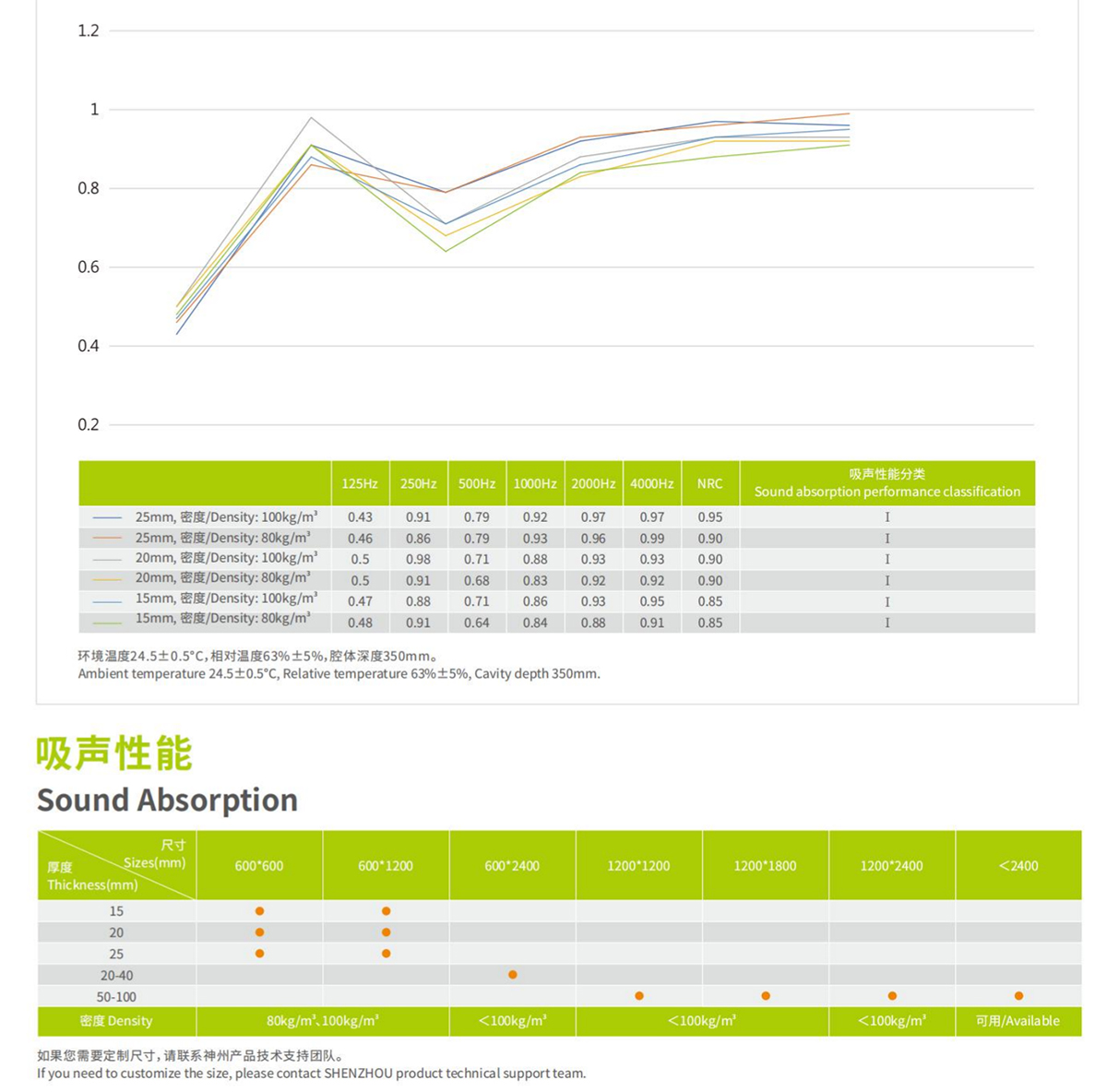

Sound Absorption
Ambient temperature 24.5±0.5°C, Relative temperature 63%±5%,Cavity depth 350mm.
If you need to customize the size,please contact SHENZHOU product technical support team.
Commercial Applications
SHENZHOU sound absorbing ceiling panels are suitable for commercial and public buildings where both acoustic comfort and interior appearance need to be considered.
SHENZHOU fibre glass acoustical ceiling uses glass wool as the base material. Through the three-dimensional structure of glass fiber, it can effectively absorb sound vibration, control sound transmission, and reduce noise penetration; uniquely crafted microporous glass fiber surface tissue and sound insulation technology with professional decorative layer makes SHENZHOU fibre glass acoustical ceiling better sound absorption and sound insulation functions. Our products provide you with a quiet and comfortable indoor environment.
SHENZHOU fibre glass acoustical ceiling uses Class A non-combustible glass wool board as the base material. In case of fire, it can effectively block the spread of flames, produce no smoke or toxic, and can extend the escape time for the trapped.
SHENZHOU fibre glass acoustical ceiling adopts unique pressing process to make the product with excellent moisture resistance. In the harsh environment of high temperature and humidity, it can maintain fine performance and appearance without deformation and sag for long time.
SHENZHOU fibre glass acoustical ceiling has fine internal pores and rich air layer structure. This structure provides high guarantee for efficient thermal insulation, and can effectively isolate the temperature and humidity between indoor and outdoor and different spaces. It will not only help you to save energy, but also provide environmental comfort.
SHENZHOU fibre glass acoustical ceiling use non-toxic, harmless and recyclable raw materials. The amount of formaldehyde emission meets the requirements of national mandatory standards, without peculiar smell, no harm to human health, and more environmentally friendly.
Surface can be cleaned with a soft cloth or vacuum cleaner. The special dust-proof layer on the surface can effectively prevent dust in the air from gathering on the ceiling surface and maintain a clean appearance.
SHENZHOU fibre glass acoustical ceiling adopts high-tech anti-bacterial technology, its non-hygroscopic property can provide no possible environment or conditions for the microorganisms to survive or reproduce.
SHENZHOU fibre glass acoustical ceiling with light weight itself, can adjust system weight according to the needs of the building structure, reduce burden on the building and ensure a long service life.
With the light weight ceiling system, SHENZHOU fibre glass acoustical ceiling is convenient and easy to install. In case of hidden equipment maintenance, it is easy to disassemble. With our products, you can easily meet the maintenance requirements of water, electrical and heating equipment in the building.
SHENZHOU fibreglass acoustical ceiling can provide different colors and shapes according to special needs of customers. It helps providing designers with sufficient design space, realizing their requirements for structural shaping, and achieving unique design inspiration.
Fiberglass acoustic ceiling tiles are primarily used to absorb reflected sound and reduce reverberation inside a room. Complete sound isolation between rooms depends on the entire ceiling, wall, floor and structural assembly.
If your project requires both indoor sound absorption and room-to-room sound insulation, please provide the target acoustic performance and ceiling structure. SHENZHOU can recommend a suitable panel configuration and installation arrangement based on the project requirements.
